IC Sockets, DIP Switch, Rotary Encoders,	Connectors, Terminal Blocks, Plugs & Sockets, Fuses & holders
Heat Sinks, Transistor Mounting kits, Screws	Buzzers, Mic, Speakers, Earphones, Keypad
Batteries, Remote Control, Rechargeable NiMH, Battery Holders, 9V battery Snaps	Power Transformers, Adaptors

IC Sockets, DIP Switch, Rotary Encoders,

DIP IC sockets

8-pin -- RM 0.25
14-pin -- RM 0.35
16-pin -- RM 0.45
18-pin -- RM 0.45
24-pin -- RM 0.65
40-pin -- RM 0.75

DIP SWITCHES Slide or rocker type. (depending on our stock)	2 bit	-	RM 2.00
	4 bit	-	RM 2.50
	6 bit	-	RM 3.00
	8 bit	-	RM 3.20
	10 bit	-	RM 3.50

ALPS 10-position Rotary Binary Encoder
Encodes binary codes : 0 ~ 9
RM 3.50 Pin-out diagram

Turn-pin Socket
( 8-way)

RM 0.60

Connectors, Terminal Blocks, Fuse & holders, Plugs & Sockets

PCB Mounting   Terminal
block ( 2 contacts)   Stackable
to form 4, 6, 8,... way t/blocks

   RM 0.85 / pc.

Click on picture to enlarge
Vertical mounting
PCB Cable Connector set (in kit form)
Specs. & view of various parts of connector
2-contacts --- RM 1.00 / set
4-contacts --- RM 1.25 / set
6-contacts --- RM 1.60 / set

Serial port (DB9) Sockets

Female, PCB mt.	RM 2.60 / pc.
Female, cable lug	RM 2.60 / pc.
Male, cable lug	RM 2.60 / pc.

Plastic covers for serial port (DB9) Sockets
RM 2.40 / set

Spring-lock Terminal Block (7 contacts) RM 2.80	Spring-lock Terminal Block (5 contacts) RM 1.30	PCB Mounting Fuse Holder (20mm fuse not included) RM 0.50/ pair	Panel Mounting Fuse Holder ( 20mm fuse not included) RM 1.50
RJ11 Splitter (1 to 2) RM *******	RJ11 Modular Socket (pcb mounting) RM 1.20	RJ11 Modular Socket (with lead wires) RM 1.20

Heat Sinks, Transistor Mounting kits, Screws

PCB Mounting Heat Sink for TO-220 power transistors, MOSFET, TRIAC,...
RM 1.00 / pc.

Mounting kit
for TO-220 & TOP-3 packages
(incl.: mica, 3mm screw+nut, insulator)
RM 0.60 / set.

Mounting screw & nuts : 3mm dia., 16mm long. For mounting power transistors

Packing	SCREWS Price(RM)	NUTS Price(RM)
20 pcs. /bag	1.30 / bag	1.00 / bag
50 pcs. /bag	2.50 / bag	2.20 / bag

Buzzers, Mic, Speakers, earphones, Coils, Key Pad

2" 8 Ω, 0.25W
Dynamic speaker
RM 1.50 / pc.

2 " 8 Ω 0.5W
Dynamic speaker
(low profile. ~9 mm thickness)
RM 1.90 / pc.

~ 23mm Dia., 8 Ω
"Made in Japan"
Ultra Miniature Mylar Cone Dynamic Speaker with lead wires
(low profile. 3 mm thickness)
RM 1.80 / pc.

Condenser microphone
RM 0.80 / pc.

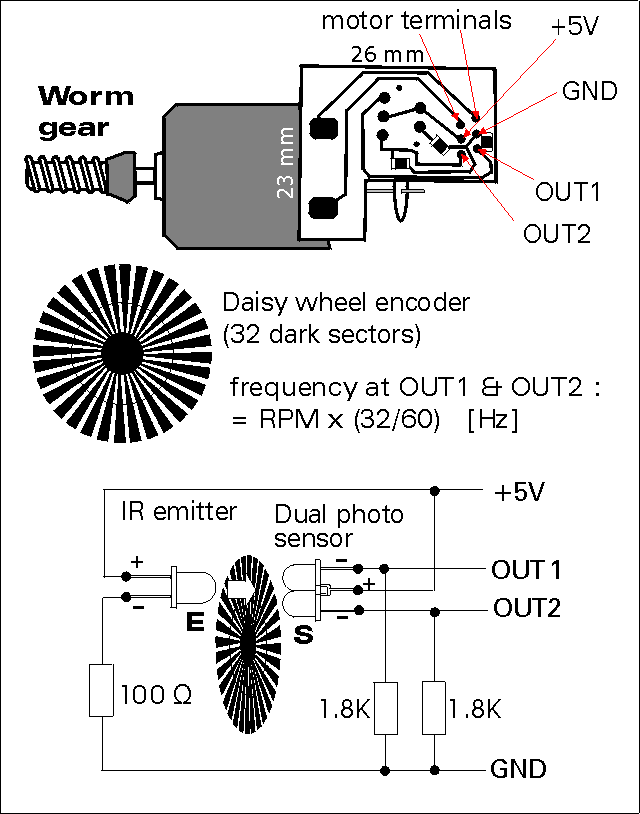

*LIMITED QTY.* Miniature DC Motor with IR speed sensor (6 ~ 12V) specs & size RM 4.50	23mm Piezo Buzzer (DC 6 ~12V) RM 2.30 / pc. (Low operating current but limited loudness)	Loud Dynamic Buzzer (DC 9 ~12V) RM 3.80 / pc. (much louder than piezo buzzer)	12 mm Miniature Dynamic Buzzer (DC 6 ~9V) RM 2.20 / pc.
RF Choke Coils 1 µH, 10 µH RM 0.35 / pc.	Original CASIO Stereo Earphone with 3.5 mm phone plug (36 Ω) RM 4.00 / set	3 x 4 Matrix Numeric Kaypad ( 7 x 5 cm) RM 6.00 / pc. Pin-out diagram	Crocodile Clip cable Set RM 9.00 / set of 10 cables

Batteries, Rechargeable NiMH, Battery Holders, 9V battery Snaps

Remote Control Battery.
Original GP brand.
No. 23A-GP, 12V alkaline
RM 2.80 / pc or
RM 11.80 / card of 5 pcs

9V Battery Snap
(with red/black lead wires)
RM 0.35 / pc

Battery Holder for 2 pcs of "AA" batteries with red/black lead wires
RM 1.20 / pc

CR2032
Branded Lithium Button Battery. 3V.
(Maxell / SONY)
RM 2.40 / pc

Rechargeable Ni-MH battery
"Made in China"
Size AA. 2100 mAH

1 pc	RM 4.30
2 pcs +	RM 4.00 each

Electronic Siren
(for alarm systems)
No. 612
(Diameter : 9 cm)
DC 12V, 110dB

RM 14.50 / pc

Power Transformers, Adaptors

Power transformers
Primary : AC 230V

"Teletron" or "Hornway"

Model	Volt	Amp	U/Price
HT- 6E02	6-0-6	0.2A	RM 9.30
HT- 9E3	9-0-9	3A	RM 25.10
HT-12E3	12-0-12	3A	RM 32.60

High Quality Switching Mode DC Adaptor C/W cable & power plug
AC230V -> DC12V @ 1.5A
RM 12.00
(limited qty.)
Plug type : U.K. standard

High Quality DC Adaptor C/W cable & power plug
AC230V ->DC 6V @ 50mA
RM 8.50
(limited qty.)
Plug type : Australian standard

Wires & Cables
