ES-03           Electronic Siren Kit (transistors)    (DC 9V)     150 ~ 200mA @ 9V


<<<<<< MORE kits .....  view other available kits >>>>>>



This kit produces a warble siren sound when connected to a 9V battery.

No IC is used in  the circuit.
Only 5 transistors & a few passive components are used.

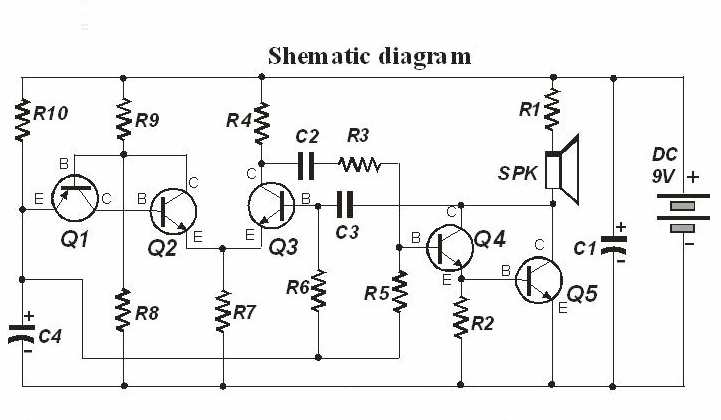

Transistors Q3 & Q4 are configured as a  astable flip-flop which generates a fixed tone.

Transistors Q1 & Q2 form a saw-tooth wave generator which modulates the frequency
of the tone generated by Q3 & Q4 thereby creating a warble siren sound.

Ideal for used as sound indicator or audible warning device

  ( speaker & 9V battery clip included )


     PCB size : 50 x 35mm
