ES-32     PWM DC Light Bulb Dimmer / Motor Speed Controller
( DC  6 ~ 15V )

<<<<<< MORE kits .....  view other available kits >>>>>>

This kit controls the brightness of light bulb or the speed of small dc motor by PWM (pulse-width-modulation).

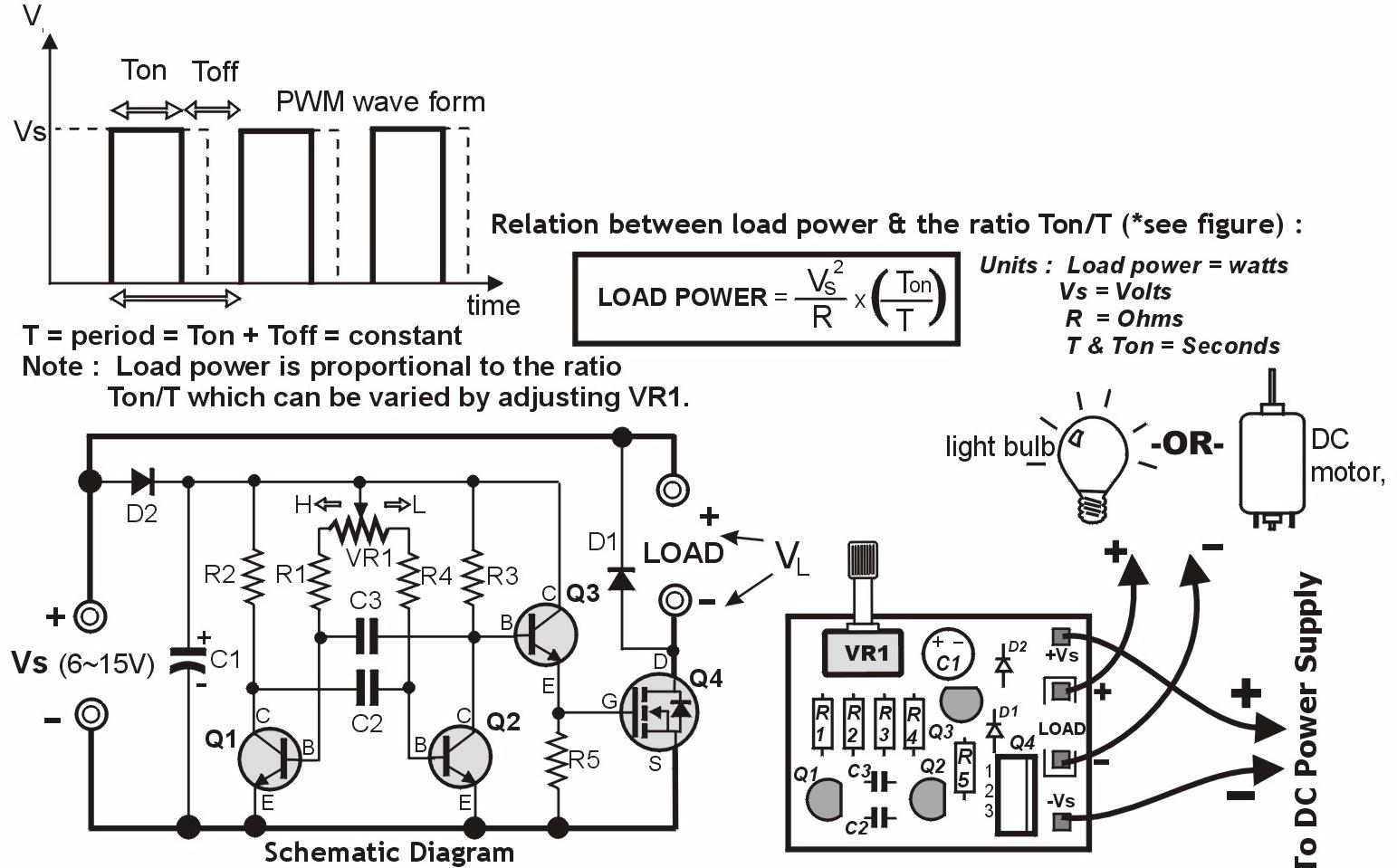

A two-transistor astable circuit generates a square wave with fixed frequency but changeable duty cycle.
The duty cycle determines load power and can be adjusted via the  potentiometer (VR).
For example: a 90% duty cycle means the load is nearly full power. 50% is half power,  etc.

A Power MOSFET is used to drive the load.

Applications :
DC motor speed control or light bulb brightness control
