ES-08        Melody Door Chime   (DC 3V)
(5 ~ 12 melodies depending on the IC supplied in the kit purchased)
Please refer to IC datasheets for details : UM348x
This version of ES-08 was DISCONTINUED due to termination of manufacturer's production of this IC

<<<<<< MORE kits .....  view other available kits >>>>>>

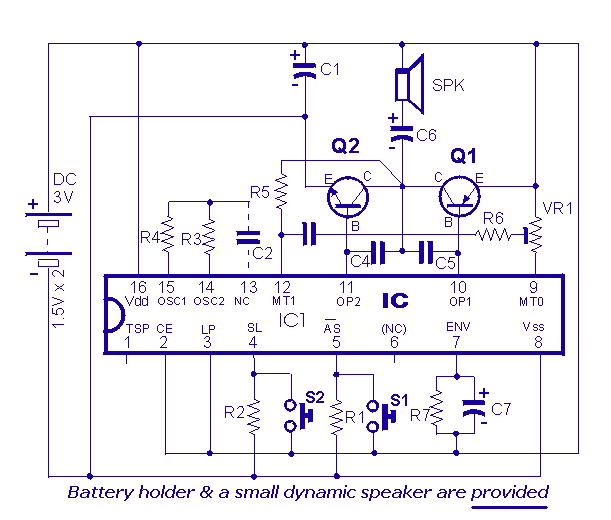

A melody generator IC is used to synthesize 5~ 12 popular melodies.
The IC can be  programmed to operate in various modes .
For this kit, two button switches are provided.

The  "repeat" button starts the same melody that was last played whereas the
 "select" button  causes the circuit to start a different tune every time.

Comes with Volume control trimmer pot.

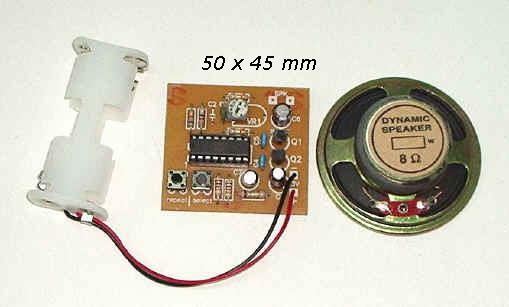

(battery holder and a small loud speaker included)       Click here for UM348x datasheet (pdf)
