ELECTRONIC PROJECTS & EXPERIMENTS


Project No. LIST of currently available projects   ( please click on project #  for details ) P.C.B.
# 06 1.2 ~ 24V @1A,   Regulated DC Power Supply Using LM317
  Power transformer NOT INCLUDED 		included
# 05 ICL7107 Digital Panel Meter with LED Display
 (input:0~1.999V. Can be modified for 1.999V & 199.9V) 		included
# 04 Single Digit Up Counter with 7-segment LED Display not included
# 03 Temperature-Controlled Relay Using LM35 & TL431    ( 0 ~ 100o C ) not included
 # 02

 Passive Infrared Motion Detector (I)

 not included
# 01 FM Radio Using TDA7000 & LM386N    *Limited stock*   not included



The following component packages are now available
We supply packages of components for the various types of projects shown below. Each package consists of all the required parts for the project but mostly without  PCB which the hobbyists  have to make their own. The material & tools for making pcb  are available here.    Artworks are available for download.
NOTE : If the parts list is not stated on the webpage, a printed copy will be enclosed with the package of components purchased.


Project # 04
 Single Digit Up Counter with 7-segment LED Display
Click on picture for details
RM 14.00 / pkg.

 PCB NOT

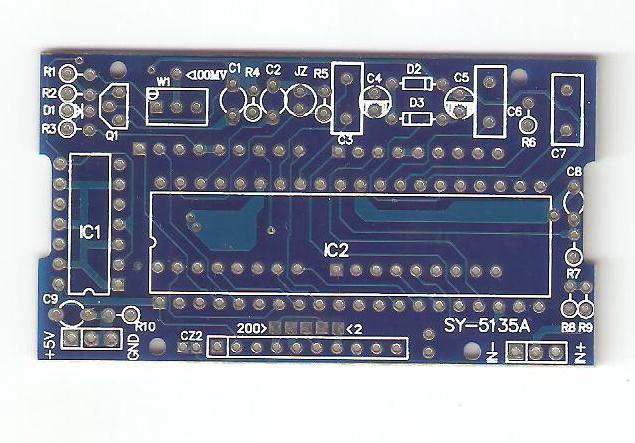

 included		 Download PCB artworks here
Tools for making pcb  are available here

  Project # 05
ICL7107 Digital Panel Meter with LED Display
 (input:0~1.999V. Can be modified for 1.999V & 199.9V)
Advanced level kit sold without detailed documentation & schematic.  Not suitable for beginners

Click on picture for details
RM 37.00 / pkg.

PCB  included

Project # 06
 1.2 ~ 24V @1A,   Regulated DC Power Supply Using LM317
   Power transformer NOT INCLUDED

Click on picture for details
RM 16.50 / pkg.

PCB  included

Project # 01
  FM Radio Using TDA7000 & LM386N
  *Limited stock*
Click on picture for details
Click on picture to enlarge
RM 14.00 / pkg.

 PCB NOT
 included		 Download PCB artworks here
Tools for making pcb  are available here

Project # 02
 Passive Infrared Motion Detector (I)

Click on picture for details
RM 20.00 / pkg.

 PCB NOT
 included		 Download PCB artworks here
Tools for making pcb  are available here

Project # 03
 Temperature-Controlled Relay Using LM35 & TL431
        ( 0 ~ 100o C )
Click on picture for details
RM 18.00 / pkg.

 PCB NOT

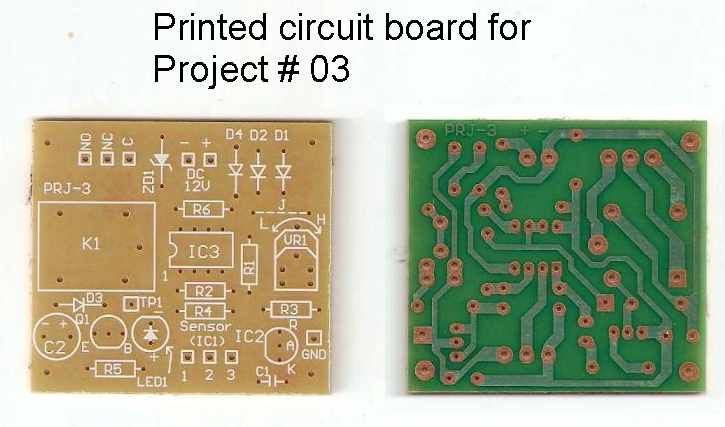

 included		 Download PCB artworks here
Tools for making pcb  are available here



<-- Download datasheet here

Go to TOP
